Bring bright, easy-to-read images up to 120" to your classroom with this WXGA display.

Easily project bright, easy-to-read images from nearly anywhere in the classroom with EB-L200SW WXGA 3LCD short-throw laser display. Delivering 3,800 lumens of brightness*1 and high-quality images of up to 120”, the EB-L200SW maximizes readability and collaboration. Designed with ease of use in mind, this durable, reliable projector offers a virtually maintenance-free, 20,000-hour laser light source*2 with no lamps to replace and built-in wireless for added convenience. Split screen*3 for up to four connected devices and built-in Miracast®, the EB-L200SW makes sharing engaging lesson plans easier than ever before.

  • 3,800 lumens of color/white brightness*1
  • 20,000-hour laser light source; no lamps*2
  • WXGA Resolution for images up to 120”
  • Quick Start-up Mode
  • Short throw ratio of 0.48-0.65 (Wide-Tele)



Where to Buy
Find Accessories Support

Laser Light Technology
With up to 20,000 hours of maintenance free laser light source, save on manpower and lamp replacement cost with the EB-L200S series laser projectors, allowing overall lower total cost of ownership.






Impressive Screen Size at Close Range
Deliver uninterrupted presentations every time with Epson’s short-throw projectors. This projector series boasts a throw ratio as low as 0.48*, allowing you to project an 120-inch* large screen from just 126cm away.





Quick Start-up
No longer do you need to warm up the projectors before presentations, start your conferences in just 5 seconds* with the EB-L200SW thanks to its laser light source.





Get Creative With Projection Signage
Together with the Epson Creative Projection app, which allows free and easy creation of contents, project short throw projectors signages using the EB-L200SW to re-define your customer’s experience.




What's in the box:

Power Cable: 4.5m
HDMI Cable: 1.8m
Remote Control: Yes, with Alkaline AA Battery

Projectors Facets:

Resolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: Over 2,500,000:1Inputs & Interfaces, Projectors Facets: HDMI
Epson Creative Projection App
RJ-45 & RS-232
USB Plug and PlayBrightness Range Lumens, Projectors Facets: 2000Features, Projectors Facets: Wifi
Quick Corner
Short Throw
Edge BlendingLaser / Lamp, Projectors Facets: Laser

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness:

White Light Output (Normal / Eco): 3,800lm / 2,660lmColour Light Output: 3,800lm

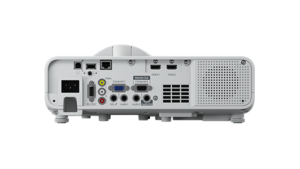

Connectivity:

Network: Wired LAN: RJ45 x 1 (100 Mbps)
Wireless LAN: Built -in ; Optional wireless (ELPAP11)Analog Input: D-Sub 15Pin: 2 (Blue)
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.2)Analog Output: D-sub 15Pin: 1Audio Input: RCA (White/Red): 1
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Mic I/O: Input: Stereo Mini Jack: 1Control I/O: RS-232C: D-sub 9 pin x 1USB Input: USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update and Copy OSD Settings)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode : Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*3, IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3, IEEE 802.11a (5GHz): 54 Mbps*3, IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3, IEEE 802.11a (5GHz): 54 Mbps*3, IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3Wireless LAN Security: Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)Supported Connection Mode: Infrastructure, Access Point (Wi-Fi Direct)

Screen Size (Projected Distance):

Zoom : Wide: 53" - 120" [0.54 - 1.26 m]Zoom : Tele: Standard Size: 87” screen 91cm

Operating Temperature:

Single Use: Low Altitude: 0 - 40 °C <32 - 104 °F>
High Altitude: 0 - 35 °C <32 - 95 °F>
20% - 80% Humidity, No CondensationMulti-projection Use: Low Altitude: 0 - 35 °C <32 - 95 °F>
High Altitude: 0 - 30 °C <32 - 86 °F>
20% - 80% Humidity, No Condensation

Start-Up Period:

Start-Up Period: Less than 8 seconds, Less than 5 seconds (Quick Startup), Warm-up period: 30 seconds.

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 16W Monaural

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 325 x 90 x 337mm

Weight:

Weight: 4.5kg

Air Filter:

Type: Electrostatic FilterMaintenance Cycle: 20,000 hours

Fan Noise:

Fan Noise (Normal / Eco): 36dB / 26dB

Power:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Keystone Correction:

Vertical/Horizontal: ±15º / ±15º Horizontal Slide Keystone Correction: Yes

Direct Power On / Off:

Direct Power On / Off: Yes

Specifications of Main Parts:

LCD: Size: 0.59" (C2 Fine)
Resolution: WXGALight Source: Type: Laser Diode
Life: 20,000 hours (Normal) / 30,000 hours (Extended)Projection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 6.4mm
Zoom Ratio: 1.0 - 1.35 (Digital Zoom)
Throw Ratio: 0.48 - 0.65 (Wide - Tele)

Power Consumption (220 - 240V):

Laser Diode ON (Normal / Extended): 254W / 193WStand By: 2.0W / 0.5W (Normal / Eco)
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

*3 Split Screen feature requires remote control. Consult your user manual for input combinations.

*4 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environment conditions.
