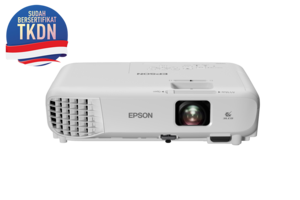

Epson EB-X600 XGA 3LCD TKDN Certified Projector

Enhance the Classroom Experience with Expressive Projections.

Engage your audience with expressive and vivid visuals in classrooms and meeting spaces using this 3600-lumen XGA projector. Proudly made in Indonesia, this product features a 52.30% Domestic Component Level (TKDN), specifically designed for the Indonesian market.

Affordable display solution

High-quality bright images 3LCD technology and equally high White and Colour Light Output with 16,000: 1 contrast ratio
Portable Small and light enough to be moved easily and used in multiple rooms
High quality sound Built-in 5W speaker for crisp, clear sound
Low total cost of ownership Lamp life up to 12,000 hours in Eco mode
Optional Wireless connection for cable free projection
Made for Indonesia with On-Screen language available in Bahasa.

Where to Buy

Find Accessories

Overview

Compelling Projection
Bring images to life in the classroom with Epson’s XGA resolution projectors. Projecting up to 3,600 lm brightness, you can now present your materials to the class with brighter pictures in better colours and contrasts. Leave a more convincing and stronger presentation to your peers and students with Epson’s projectors today.

Auto Vertical Keystone
Saving setup time, Auto Vertical Keystone automatically detects and corrects image distortion when the foot lever is used to adjust the height of a projected image.

Horizontal Keystone Slider
With the easy-to-use sliding Horizontal Keystone Slider, screen corrections can be done quickly, easily, and accurately, even in a limited space.

Optical Zoom

Optical zoom provides the flexibility to adjust the projector’s installation location while still maintaining the desired picture size and quality.

Easy Maintenance and Longer Lamp Life

A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.

Specifications

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness¹:

White Light Output (Normal/Eco): 3,600 lm / 2,400 lmColour Light Output: 3,600 lm

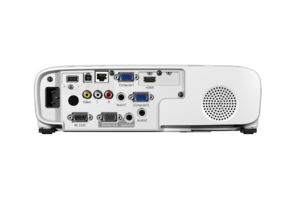

Connectivity:

USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network: Wireless: Optional (ELPAP11)
Wired LAN : 1 (RJ45)Analog Input: Composite: 1 (RCA)
D-Sub 15pin: 2Digital Input: HDMI: 1 Analog Output: Monitor Out : 1Audio Input: 2 RCA (White x1; Red x 1): 1
Stereo Mini : 2Audio Output: Stereo Mini : 1Control I/O: RS232C : 1

Contrast Ratio:

Contrast Ratio: 16,000:1

Screen Size (Projected Distance):

Screen Size: Wide: 30” to 300” [0.89 to 9.12 m]
Tele: 30” to 300” [1.07 to 10.95 m]Standard Size: 60" screen 1.8 - 2.17m

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)Quick Corner: Yes

Operating Temperature:

Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F>
High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude: 0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Weight:

Weight: Approx. 2.7 kg

Air Filter:

Maintenance Cycle: 6,000 / 12,000 hours^*3

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 28dB

Power:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

Lamp On (Normal/Eco): 327W / 225WNetworked Standby: 2.0WEnergy Saving: 0.3W

Dimension Excluding Feet:

Dimension Excluding Feet (W x H x D): 302 x 87 x 249 mm

Specifications of Main Parts:

LCD: Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)Light Source: Type: 210W UHE
Lamp Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio: 4:3Projection Lens: F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)

Optional Wireless LAN Specification:

Supported Speed for Each mode : IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2Supported Mode: Infrastructure, Access PointWireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

See Full Specs Hide Full Specs

Print All Specs

Accessories

Notes:

^*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

^*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

^*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3 ). Based on the Epson’s in-house test results
