Epson SureColor S9130 64-Inch Solvent Printer (available in 1H of 2025)

Expand your perception of what a solvent printer can be.

Offering the same extreme colour gamut Epson is known for, the SureColor S9130 has an 11-colour ink set including Red, Orange and an all-new Green, enabling you to faithfully reproduce virtually any colour for your customers. The SC-S9130 features a PrecisionCore Micro TFP printhead with an integrated nozzle temperature sensor control for reliable image quality and consistent colour uniformity from start to finish. Created to shift expectations, the SC-S9130’s sleek, compact, modern design sets it apart.

Wide colour gamut with 11-colour ink set including Red, Orange and all-new Green
Sleek and compact space-saving design
Latest generation PrecisionCore Micro TFP printhead
Nozzle temperature sensor for more accurate and consistent colours

Find Ink Support

Overview

The SC-S9130 features a PrecisionCore Micro TFP printhead with an integrated nozzle temperature sensor control for reliable image quality and consistent colour uniformity from start to finish. Created to shift expectations, the SC-S9130’s sleek, compact, modern design sets it apart.

Expanded colour gamut — 11 colour ink set including Red, Orange and an all-new Green ink

Exceptional precision and quality - Produce quality images with Epson UltraChrome GS3 eco-solvent ink in a wider gamut of colours that deliver precise prints. The GS3 inks are also Greenguard Gold certified and is safe for indoor use

Incredible speed and performance — Built with latest generation PrecisionCore Micro TFP printheads for speedy, precise, and consistent print quality

Upgraded 4.3" tiltable touch panel — Offering an intuitive, at-a-glance view of critical information

Easy to maintain — Automatic daily printhead maintenance

Versatile ink — Mix and match ink sizes; 800ml or 1,500ml*

Advanced software — Simple integration to Epson Cloud Solution PORT printer monitoring system **

What's in the box:

SureColor S9130 Printer

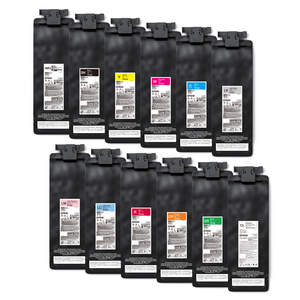

Set of Ink: C, M, Y, K, Lc, Lm, Lk, Or, R, G, Cl (800 ml/each)*
Epson Edge Print Pro RIP
Power Cord (x2)
Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2)
Waste Ink Bottle
Ink Cleaner
Cleaning Stick
Media Cleaning Brush
User Guide Kit

Specifications

Printing:

Printing Technology: PrecisionCore Inkjet Technology
Variable-Sized Droplet TechnologyNozzle Configuration: The number of nozzles: 9,600 nozzles
400 nozzle/row × 2 row/colour x 10 colours + 400 nozzle/row × 4 row/colour x 1 colour (white)Maximum Printable Area: 300 to 1,619.6 mm; Max. paper width 1,625.6mm - Min. left and right margins 3mm eachMargin (Roll Paper): 5 mm (Right/Left)Maximum Resolution: 1200 x 1200 dpiMaximum Print Speed: 1 Layer, Colour:
1 pass: Up to 119.4 m²/h (300 x 300 dpi)
2 pass: Up to 63.0 m²/h (300 x 600 dpi)
4 pass (high speed): Up to 35.6 m²/h (600 x 600 dpi)
4 pass: Up to 29.9 m²/h (600 x 600 dpi)
5 pass: Up to 25.3 m²/h (600 x 600 dpi)
6 pass: Up to 20.1 m²/h (600 x 600 dpi)
8 pass: Up to 14.8 m²/h (600 x 600 dpi)
10 pass: Up to 14.0 m²/h (1200 x 600 dpi)
12 pass: Up to 9.8 m²/h (1200 x 600 dpi)
17 pass: Up to 7.2 m²/h (1200 x 600 dpi)
30 pass: Up to 4.0 m²/h (1200 x 600 dpi)
47 pass: Up to 2.6 m²/h (1200 x 1200 dpi)

1 Layer, Colour + White:
8 pass: Up to 14.8 m²/h (600 x 600 dpi)
12 pass: Up to 9.8 m²/h (1200 x 600 dpi)
17 pass: Up to 7.2 m²/h (1200 x 600 dpi)
30 pass: Up to 4.0 m²/h (1200 x 600 dpi)
47 pass: Up to 2.6 m²/h (1200 x 1200 dpi)

2 Layer, Colour + White:
18 pass: Up to 6.9 m²/h (600 x 600 dpi)
30 pass: Up to 4.0 m²/h (1200 x 600 dpi)
47 pass: Up to 2.6 m²/h (1200 x 1200 dpi)

3 Layer, Colour + White:
27 pass: Up to 3.4 m²/h (600 x 600 dpi)
46 pass: Up to 2.0 m²/h (1200 x 600 dpi)
75 pass: Up to 1.2 m²/h (1200 x 1200 dpi)

Minimum Ink Droplet Volume: 4.3plPrinthead: PrecisionCore MicroTFP printhead

Ink:

Ink Type: Eco-solvent inkColours: 11 Colours - Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Red, Orange, Green, White or CleaningInk Capacity: 800ml / 1500mlInk Brand Name: UltraChrome GS3 InkInk Case: Ink Supply Unit

General:

Memory: 4GBAcoustic Noise Level: Sound Pressure Level: Less than 60.5 dB(A)
Sound Power Level: Less than 7.9 dB(A)Control Panel: 4.3" Optical Touch Colour LCD

Paper Handling:

Paper Feed Method: Friction FeedPaper Path: Roll (Single Roll)Maximum Roll Diameter / Weight: Max. 250 mm/45kgMaximum Reel Diameter: Max. 250 mm

Recommended System Requirements:

Utility Software (Web delivery): Windows – Epson Edge Print Pro, Epson Edge Dashboard, Epson Edge Color, Epson Device Admin, Software Updater, Firmware UpdaterWin PC System Requirements: Windows 8.1/10/11 (x64)
CPU: Intel Corei3 3.0GHz or faster
Memory: Memory more than 8GB
HDD: 50GB or moreMac System Requirements: Mac OS 10.7 or later

Media Handling:

Media Width: 300 to 1625.6 mmMedia Thickness: Less than 1 mm

Dimensions and Weight:

Dimensions: Printing: 2,620 x 1,004 x 1,021 mm (W x D X H)
Stowed: 2,620 x 925 x 1,021 mm (W x D X H)
Weight: Approx. 342 Kg

Electrical Specifications:

Power Consumption: Operating: Approx. 1190W
Ready: Approx. 500W
Sleep: Approx. 3.4W
Power Off (Standby): Approx. 0.3WSupply Voltage: 100/200V

Print Speed:

Printing Technology: PrecisionCore Inkjet technology
Variable-Sized Droplet Technology

Recommended Operating Temperature & Humidity:

Temperature: Operating: 15 - 35℃
Operating (recommended): 20 - 32℃
Storage: -20 - 40℃Humidity: Operating: 20 - 80% (no condensation)
Operating (recommended): 40 - 60% (no condensation)
Storage: 5 - 85% (no condensation)

Connectivity:

Interfaces: SuperSpeed USB*1, 100BASE-TX /1000BASE-TPrinter Languages : ESC/P raster

See Full Specs Hide Full Specs

Print All Specs

Accessories

Ink

Support

Notes:

^* Part of the ink from the first cartridges/packs is used for initialising the printer. Ink usage will vary considerably based on images printed, print settings, paper type, frequency of use, temperature and humidity. Variance may be more pronounced when printing infrequently or predominantly with one ink colour. Ink is used for printing and printer maintenance, and all colours must be available for printing. For print quality, a variable amount of ink remains after the "replace ink" indicator comes on

^** All features of this system require an active Internet connection and the use of a supported browser.
