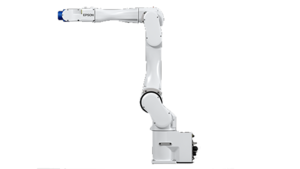

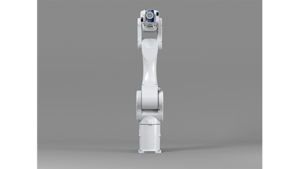

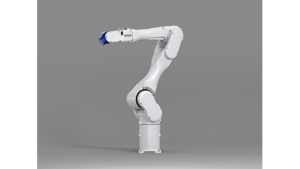

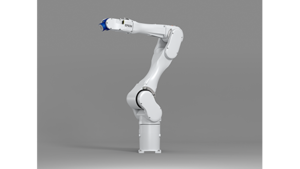

Epson Robot C12

Zoom In
Epson Robot C12
Epson Robot C12
Epson Robot C12
Epson Robot C12
Epson Robot C12
Epson Robot C12
Epson Robot C12
Epson Robot C12

Space-saving, Slim and Powerful

Building on the success of C8 Series robots, C12XL robots are now capable of handling higher payloads and can be integrated at the assembly lines for packing and palletising tasks.

      • Handles payloads up to 12kg
      • Available with 1400mm arm length
      • Lightweight, slim arm suitable for machine-tending
      • Increased load capacity to 12kg to expand the application area





      For more information on other robot models, please download the range catalogue here.

A new addition to Epson 6-axis robots – C12XL is capable of handling payloads up to 12kg.

With an arm length of 1400mm, it is suitable for the electrical/electronic and automotive parts industry for applications such as palletizing and machine tending that require higher payload.

Its smaller footprint takes up lesser space which provides greater flexibility in the layout design of the entire automation solution.

General:

Payload: Rated 3kg / Max 12kgArm Length: 1400mmRepeatability: Joints #1 - #6: ±0.05mmStandard Cycle Time: 0.50secInstallation Environment: Standard / Cleanroom & ESDMounting Type: Table Top
